試分析此鎮流器的工作原理,不用磁環,調試簡單!有圖.
試分析此鎮流器的工作原理,不用磁環,調試簡單!有圖.1161848883.doc
全部回復(28)
正序查看
倒序查看

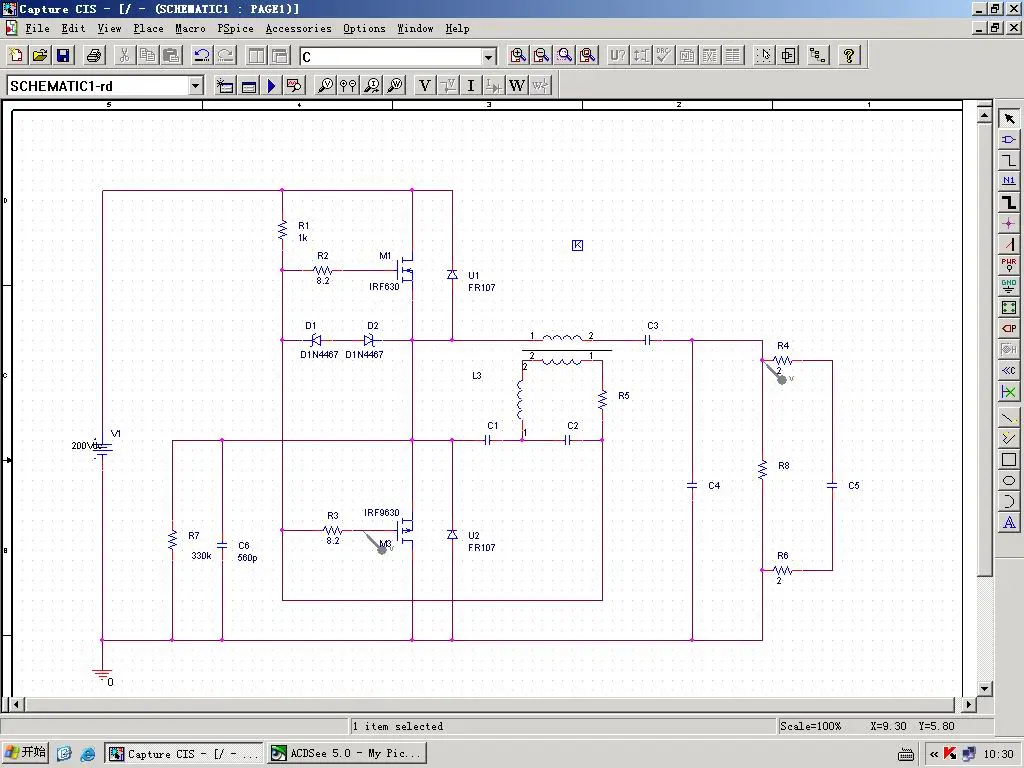

我已仿真出.
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/46/1162090893.jpg');}" onmousewheel="return imgzoom(this);">
波型圖
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/46/1162091052.jpg');}" onmousewheel="return imgzoom(this);">

波型圖

0
回復
@sxfeng
我已仿真出.[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/46/1162090893.jpg');}"onmousewheel="returnimgzoom(this);">波型圖[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/46/1162091052.jpg');}"onmousewheel="returnimgzoom(this);">
什么軟件來的!能不能告訴我在哪里可以買到.
0
回復
@sxfeng
我已仿真出.[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/46/1162090893.jpg');}"onmousewheel="returnimgzoom(this);">波型圖[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/46/1162091052.jpg');}"onmousewheel="returnimgzoom(this);">
效果不錯吧,而且易調試!
0
回復

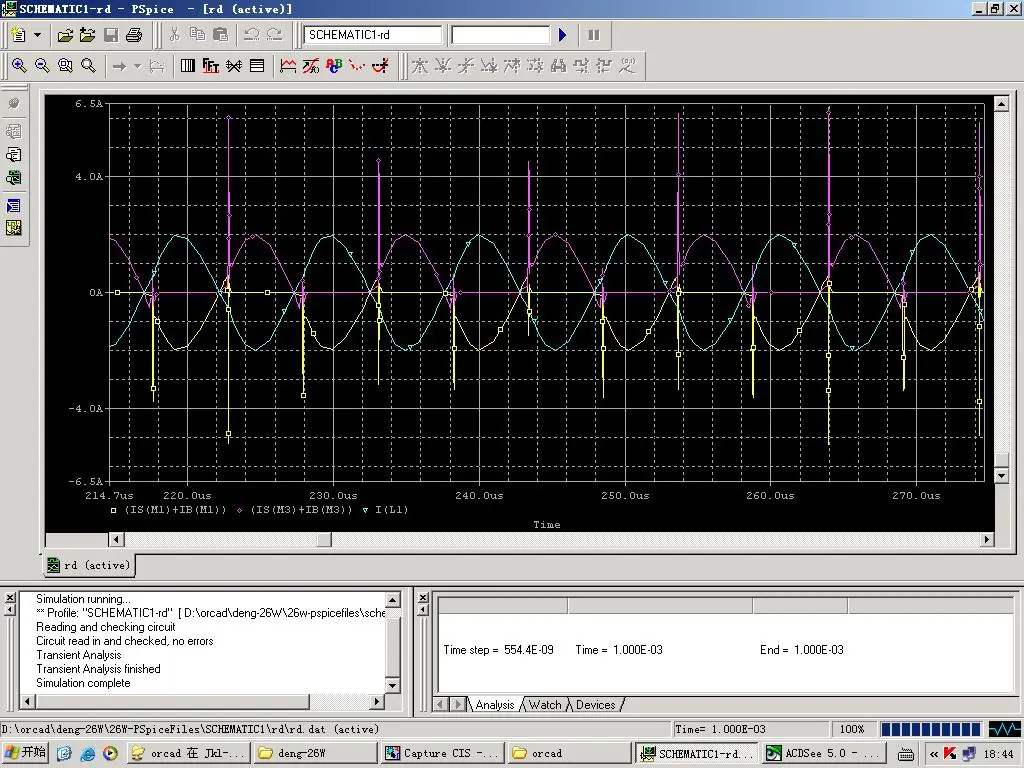

你好!此電路是否存在對管共態導通?下圖是對管及扼流圈電流波形.
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/47/1163157412.jpg');}" onmousewheel="return imgzoom(this);">

0
回復

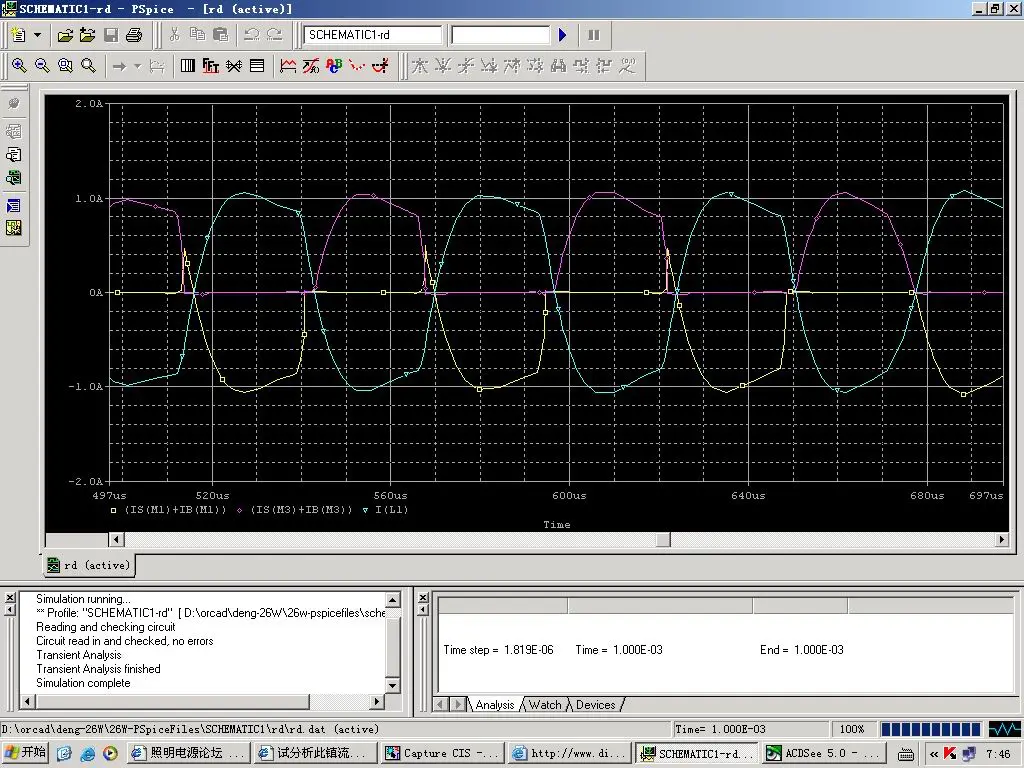

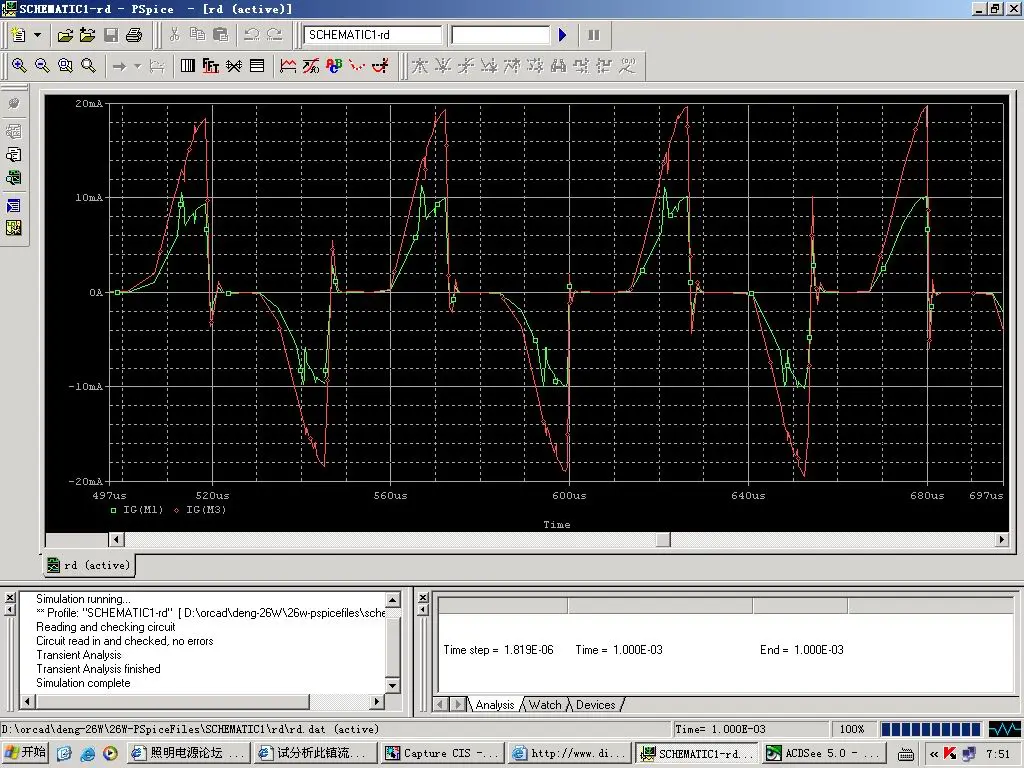

按你的參數倆管的電流波形
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/47/1163203904.jpg');}" onmousewheel="return imgzoom(this);">

0
回復
@sxfeng
我已仿真出.[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/46/1162090893.jpg');}"onmousewheel="returnimgzoom(this);">波型圖[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/46/1162091052.jpg');}"onmousewheel="returnimgzoom(this);">
哈哈,不錯的仿真效果,雖然元器件與實際電路有些偏差,但是非常有助于對此電路工作原理的理解.不過我個人有以下不明之出:
我對比了一下實際量產的電路與仿真電路發現,樓主的仿真電路(對管)開關管子的驅動繞組是與電路完全隔離的;而量產用的電路是在半橋回路中.不知道是否與實際有非常大的區別.思考中......
我對比了一下實際量產的電路與仿真電路發現,樓主的仿真電路(對管)開關管子的驅動繞組是與電路完全隔離的;而量產用的電路是在半橋回路中.不知道是否與實際有非常大的區別.思考中......
0
回復
