今天我用uc3843做 buck遇到問題
我今日我設計了這個buck,反遺不產生作用,所以失敗了,請各位幫忙
全部回復(22)
正序查看
倒序查看
@mingpinky
自舉電路應如何加?
如圖:

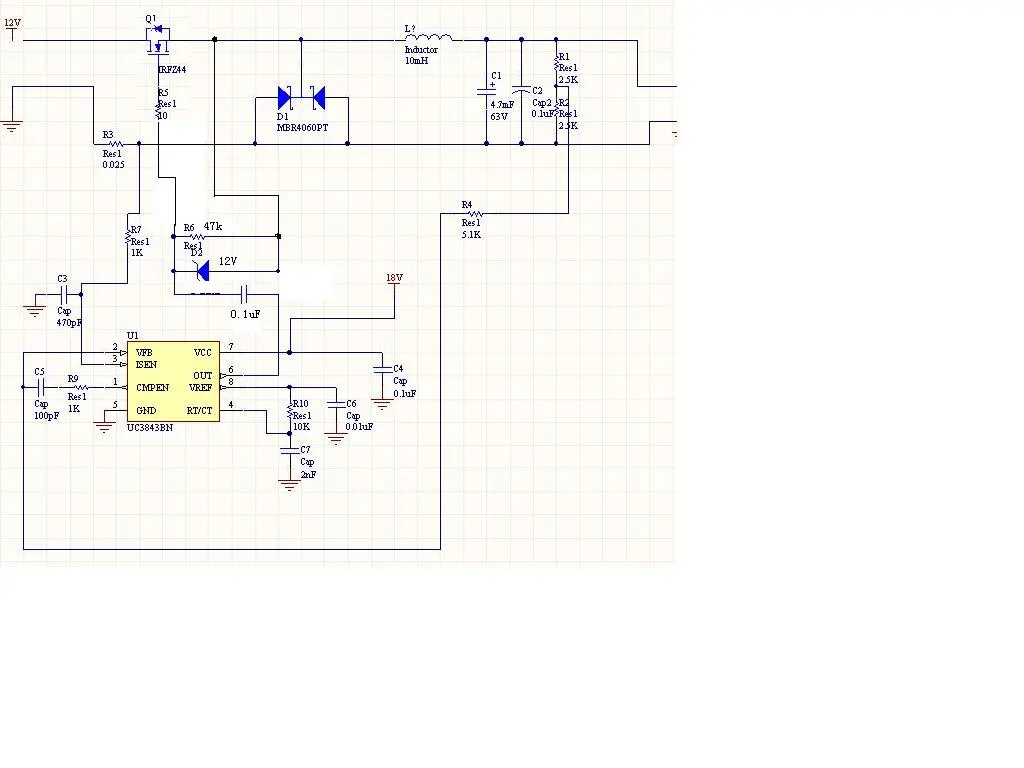

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/52/1176644625.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/52/1176644625.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@deep_thought
如圖:[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/52/1176644625.jpg');}"onmousewheel="returnimgzoom(this);">

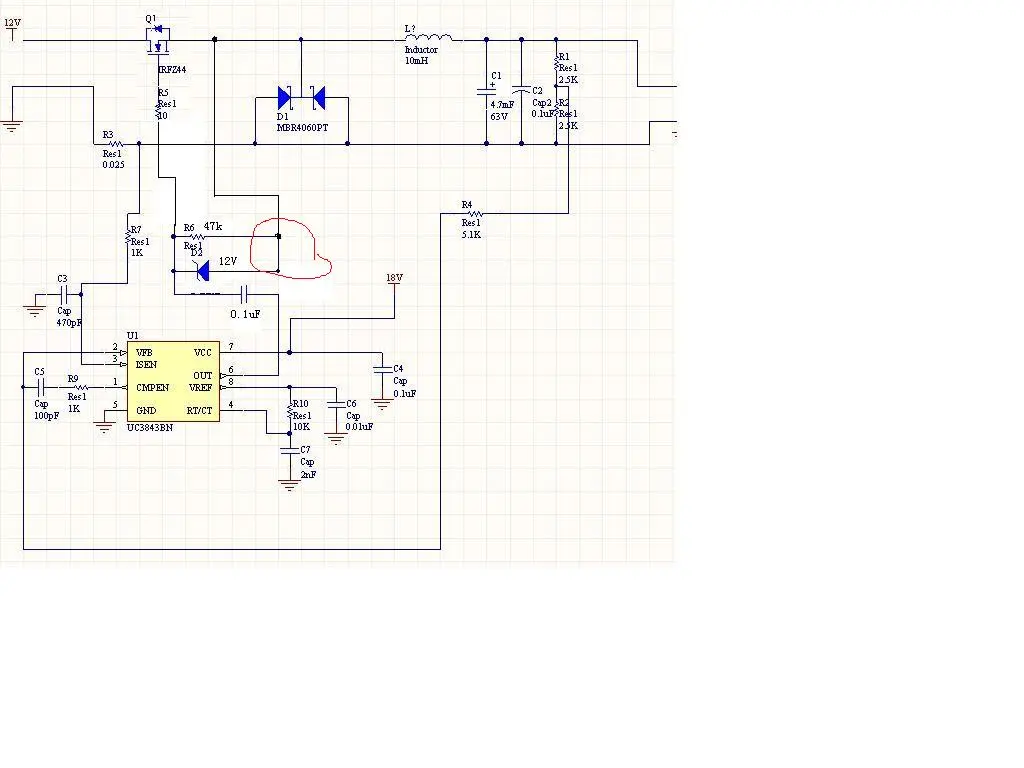

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/52/1176653561.jpg');}" onmousewheel="return imgzoom(this);">
紅圈的部份要不要接地?
0
回復
@mingpinky
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/52/1176653561.jpg');}"onmousewheel="returnimgzoom(this);">紅圈的部份要不要接地?
反饋部分不對,2腳始終是高電位
建議用TL431+光耦接于輸出端,UC3842的2腳接地,光耦的三極管端接1腳和地,兩端并容量為0.1uf的電容.
建議用TL431+光耦接于輸出端,UC3842的2腳接地,光耦的三極管端接1腳和地,兩端并容量為0.1uf的電容.
0
回復
@mingpinky
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/52/1176653561.jpg');}"onmousewheel="returnimgzoom(this);">紅圈的部份要不要接地?
不用接. D2改為18V穩壓管.
0
回復
@mingpinky
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/52/1176653561.jpg');}"onmousewheel="returnimgzoom(this);">紅圈的部份要不要接地?
建議用3843取代3842, 7腳電源改接12V
0
回復
@藍黑
要用P溝道的MOS或者用光耦隔離驅動

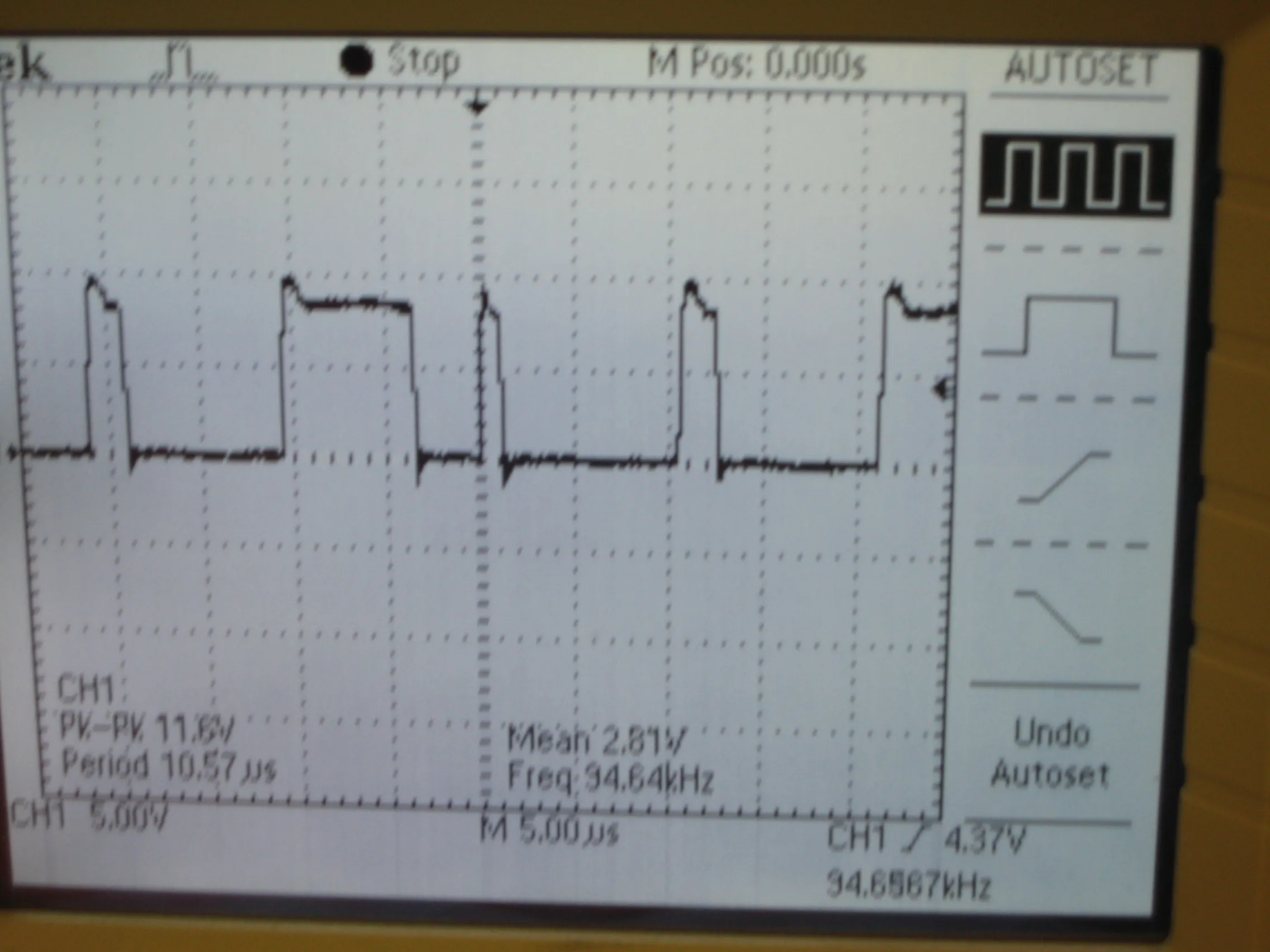

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/52/1176812429.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@deep_thought
頻率電路由8腳(5V)供電,跟7腳輸入電壓無關.

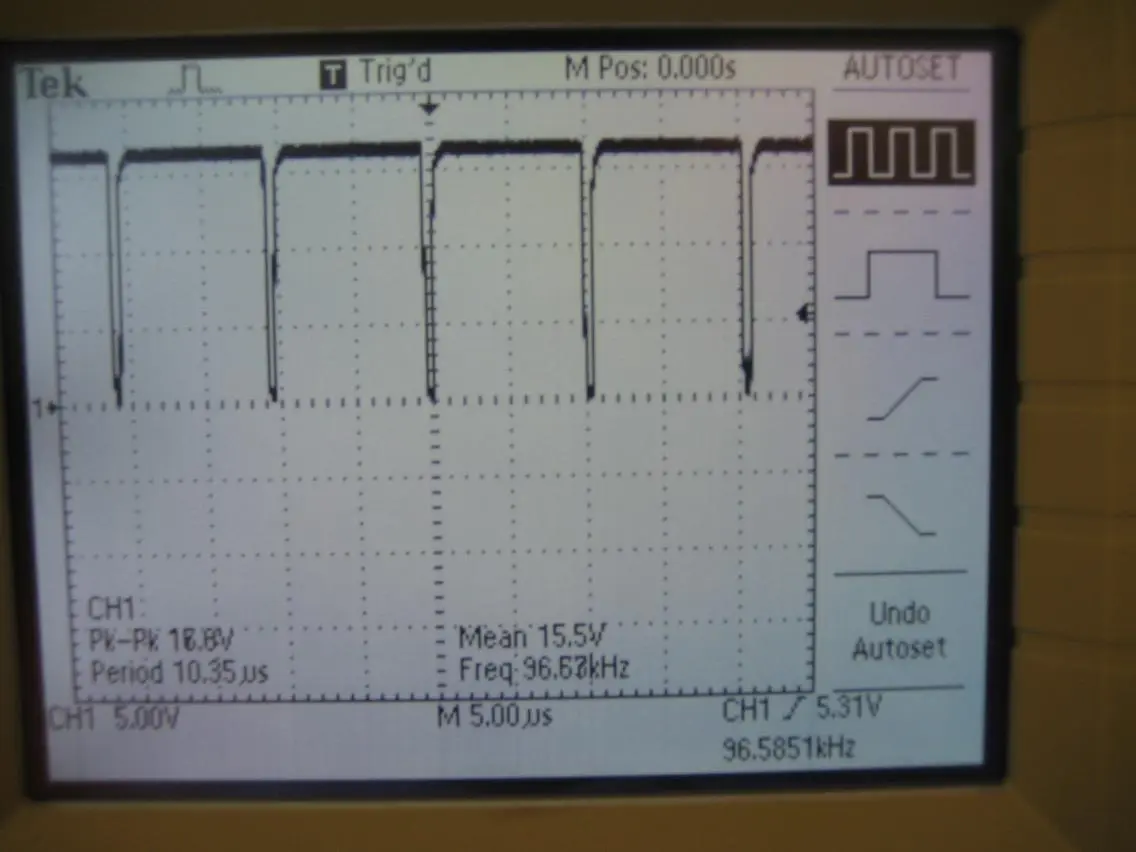

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/52/1176833015.gif');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/52/1176833033.jpg');}" onmousewheel="return imgzoom(this);">

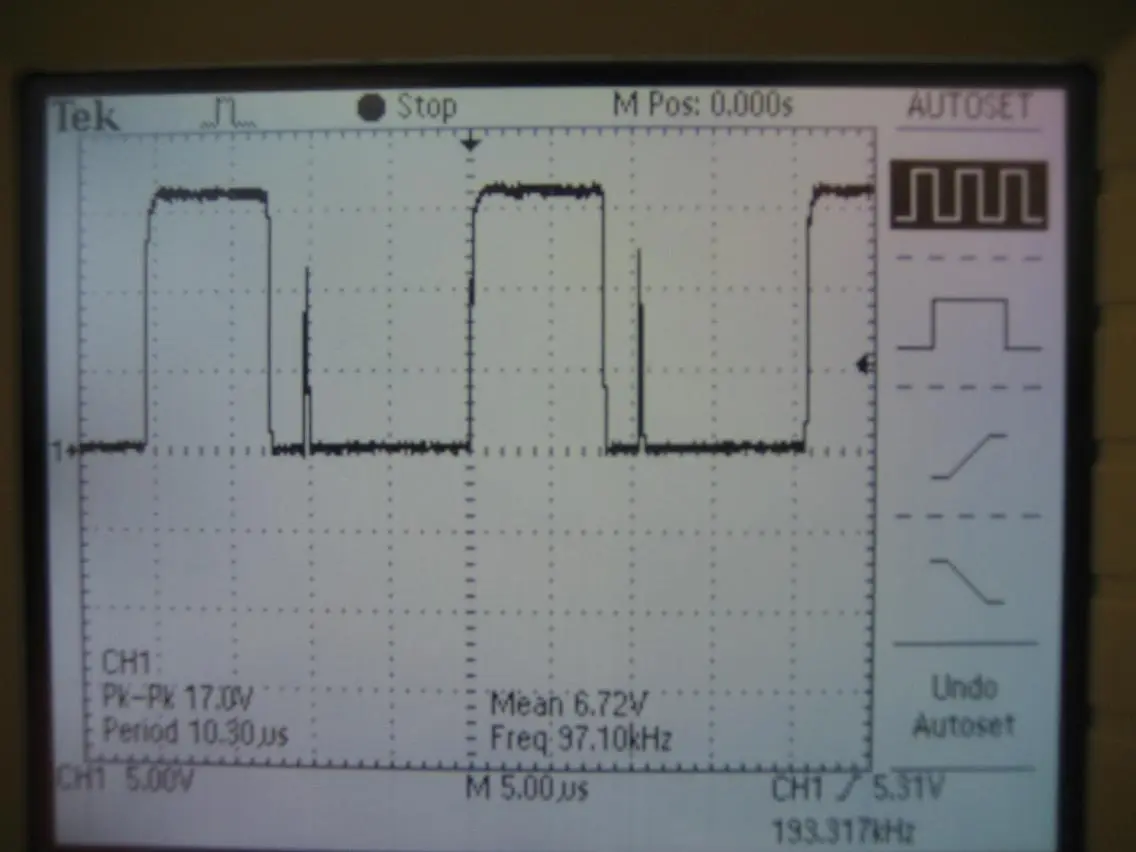

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/52/1176833039.jpg');}" onmousewheel="return imgzoom(this);">

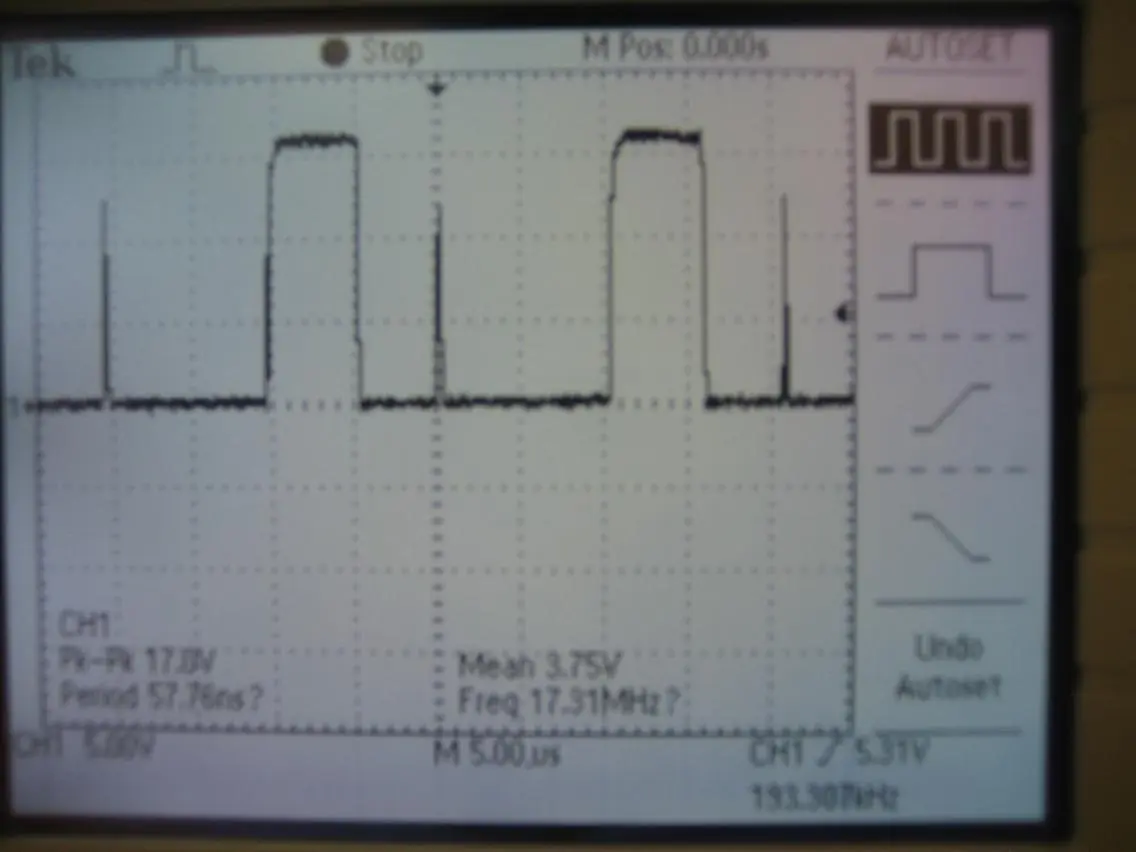

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/52/1176833045.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@mingpinky
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/52/1176833015.gif');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/52/1176833033.jpg');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/52/1176833039.jpg');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/52/1176833045.jpg');}"onmousewheel="returnimgzoom(this);">
我用上圖的方案,現在Vo可以5V,但當Vin上升占空比下是下降,而是,有時沒有,應如何解決?
