我用SG3525做的大功率電鍍電源,輸出占空比很小.要求輸出1000A/12V的,但只能輸出600A/7.5V.
開關頻率18K,雙環路控制,輸出主變壓器匝比為32:1,全橋變換電路.
測其輸出波形發現最大占空比只有0.4左右,SG3525第2腳控制電壓已調到6V,正常情況下,第2腳電壓在4V就能達到0.8的占空比.
斷開IGBT主高壓電路,測主控板輸出波形的占空比可達0.8,且波形很理想,但接上主高壓回路后,輸出波形的占空比就受到限制,不知是什么原因?
請各路英雄出手相助,謝謝!
用SG3525做的大功率電鍍電源出現的問題
全部回復(16)
正序查看
倒序查看
電源行業的同行們 介紹一種 好的整流二極管給你們 兄弟們看看MUR400100CT MUR20020CT MUR20040CT MUR20060CT MUR30045CT 等等 聯系QQ :3420633
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/54/1740391180940371.jpg');}" onmousewheel="return imgzoom(this);">

0
回復
@whglqqq
電源行業的同行們 介紹一種好的整流二極管給你們兄弟們看看MUR400100CTMUR20020CTMUR20040CTMUR20060CTMUR30045CT 等等聯系QQ:3420633[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/54/1740391180940371.jpg');}"onmousewheel="returnimgzoom(this);">
有需要瑞凌機子上面用的銅連接件.銅條.旋扭.豎梁可以聯系我!便宜供應!!有什么要求給我信箱留言:rocky8065@mail.china.com
0
回復
看看 廣東在批量用的MURP20020CT MURP20040CT MURP20060CT
MURP400100CT MURP400200CT MURP300100CT MURP300200CT
MURP600100CT ...........
IGBT模塊 也正熱銷中
非晶磁芯 也正熱銷中
三相整流橋 也正熱銷中

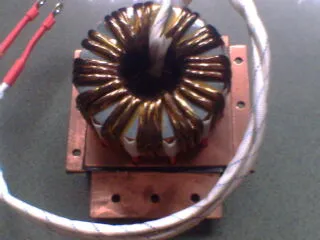

高頻變壓器 也正熱銷中

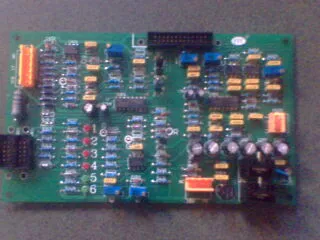

高頻線路板 資料如下:
