它不會引起負脈沖問題.(即地線上不會有負尖沖.)
(象做瞬態響應時,產生上下尖沖)

地彈躁聲

多謝!

多謝!還有下面兩句不太懂,麻煩幫我看看吧!

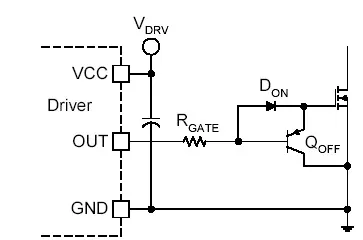

1.The turn-off transistor shunts out the gate drive loop inductance, the potential current sense resistor, and the output impedance of the driver. 里面的shunts out 和 potential current sense resistor

2.the gate of the main MOSFET is floating before the outputs of the driver IC becomes intelligent during power up.里面的becomes intelligent during power up
謝謝!

難?。乙部床欢央娐穫魃蟻?lái),或許能猜出來．shunt out 可能指并聯．potential current sense resistor 可能指磁化電流感測電阻．第二句大概指,上電期間,在驅動IC的輸出變得智能化之前,主MOS的柵極是浮置的．這個intelligent 估計指能夠自動控制吧．我只能瞎猜了．

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/25/1105150466.jpg');}" onmousewheel="return imgzoom(this);">500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/25/1105150492.jpg');}" onmousewheel="return imgzoom(this);">
第一個圖對應第一句話,第二個對應第二句.請你再看一下.謝謝!

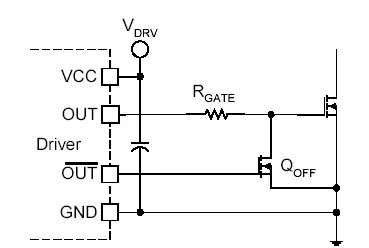

不好意思發錯了,第二個圖是下面這個:500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/25/1105151068.jpg');}" onmousewheel="return imgzoom(this);">

第一句的意思應是這樣的:(當Qoff導通時),它就把驅動回路電感,驅動器的輸出阻抗,及potential current resistor給旁路掉了,(使得關斷速度邊快了)．potential current resistor你沒畫出來,估計是磁化電流傳感電阻．第二句就是我說的哪個意思,及上電期間,芯片還未開始工作,沒有輸出時,MOS柵極是浮置的．
