做了一款電源負載2A功率24W工作就不正常,不知道是什么問題?
情況是載負載2A的時候工作5分鐘就停一會在啊工作....請教是什么問題??
我用的IC是SM8013
12V3A開關電源不正常工作?(請教)
全部回復(7)
正序查看
倒序查看
@stctie

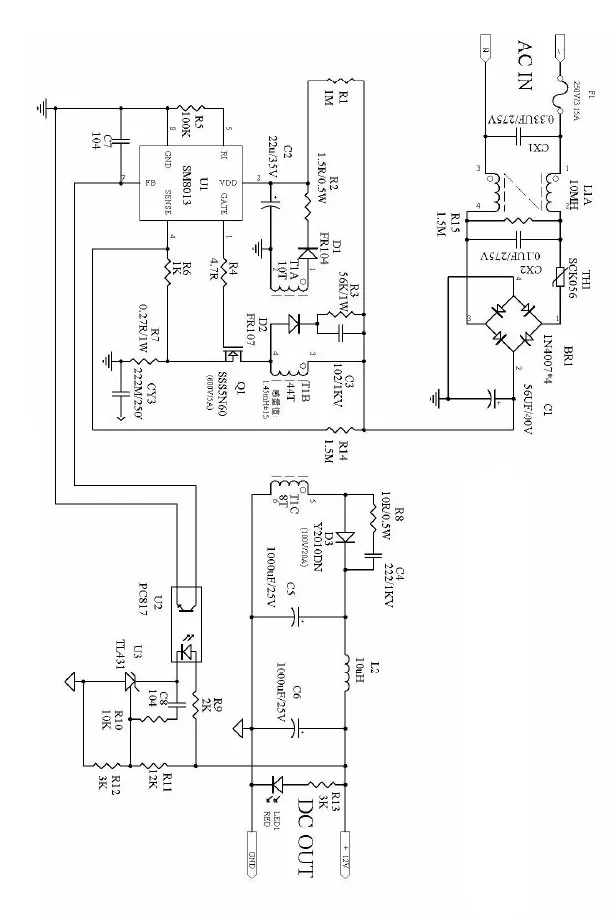

把原理圖傳上來大家才能幫你分析啊
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/67/2586891217324056.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@zhangjie312822
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/67/2586891217324056.jpg');}"onmousewheel="returnimgzoom(this);">
現在的溫度很高,我測了一下驅動裝在殼里的溫度是65度左右,外殼的溫度也有55度,不知怎么辦,第一次做電源,請各位指教!!
0
回復
@zhangjie312822
現在的溫度很高,我測了一下驅動裝在殼里的溫度是65度左右,外殼的溫度也有55度,不知怎么辦,第一次做電源,請各位指教!!
這是驅動器
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/67/2586891217325135.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/67/2586891217325148.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/67/2586891217325135.jpg');}" onmousewheel="return imgzoom(this);">500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/67/2586891217325148.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@zhangjie312822
這是驅動器[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/67/2586891217325135.jpg');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/67/2586891217325148.jpg');}"onmousewheel="returnimgzoom(this);">
變壓器的繞組是:N1,Q0.3*22T,N2,Q0.5*2*8T,N3,Q0.3*10T,N4,Q0.3*22T.輸出交流電壓是26V用D2010DG整流后取的電壓是12V不知道有沒有問題
0
回復
@zhangjie312822
這是驅動器[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/67/2586891217325135.jpg');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/67/2586891217325148.jpg');}"onmousewheel="returnimgzoom(this);">
不會吧,全部用插件!!!都什么年代了AA
