請高手指點 我OB2358 做12W 12V 1A
NP=133T NS=19 NV=31T
LP=2.4MH (設計在CCM模式)
空載時電壓不穩定
輕載時就穩定了12V了
請高手指點,感激不盡
OB2358調試問題
全部回復(4)
正序查看
倒序查看
@huangchaohu

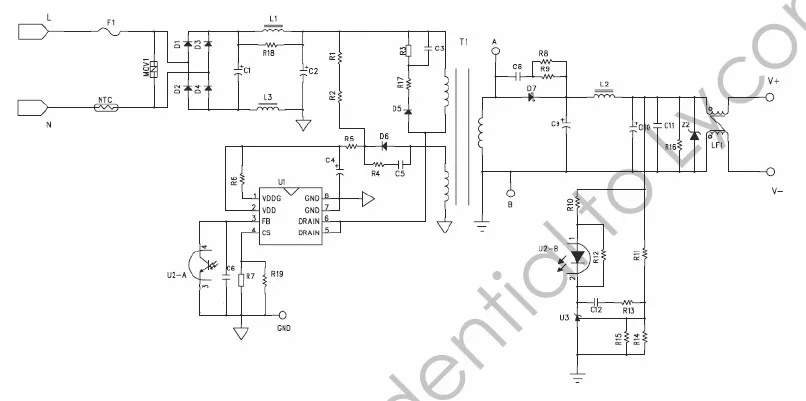

附電路圖
電路圖
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/74/2996531235365831.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/74/2996531235365831.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@huangchaohu
電路圖[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/74/2996531235365831.jpg');}"onmousewheel="returnimgzoom(this);">
N1:98/N2:19/N3:30/LP=1.6mh
