為什么我的全橋變換器仿真時,變壓器兩端的電壓會這么低啊?

還望高手指點啊,我把仿真程序附上:1118622669.dsn
全部回復(21)
正序查看
倒序查看
andyxm
LV.5
2
2005-06-13 20:55
還請大家咄多多發言啊,小弟非常困惑??!
0
回復
qaz33510
LV.9
3
2005-06-13 21:49
@andyxm
還請大家咄多多發言啊,小弟非常困惑啊!
是那一點的波形啊?貼你的 .prj 文件上來看看。
0
回復
andyxm
LV.5
4
2005-06-13 22:03
@qaz33510
是那一點的波形啊?貼你的.prj文件上來看看。

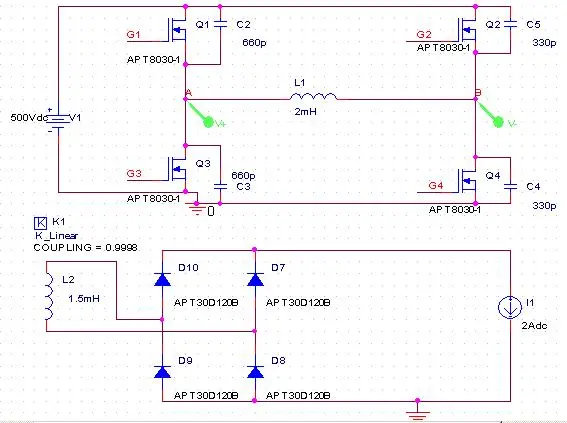

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1118670871.jpg');}" onmousewheel="return imgzoom(this);">
是qaz兄啊,還認識我嗎?我把dsn文件上傳了,你就能在你機子上仿真了,不知道怎么回事,我變壓器兩端電壓怎么這么低啊,
0
回復
qaz33510
LV.9
5
2005-06-14 09:14
@andyxm
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1118670871.jpg');}"onmousewheel="returnimgzoom(this);">是qaz兄啊,還認識我嗎?我把dsn文件上傳了,你就能在你機子上仿真了,不知道怎么回事,我變壓器兩端電壓怎么這么低啊,
認得你啊。我還未仿,不過覺得是I1的問題,試把I1拿掉再仿。
0
回復
qaz33510
LV.9
6
2005-06-14 12:58
@andyxm
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1118670871.jpg');}"onmousewheel="returnimgzoom(this);">是qaz兄啊,還認識我嗎?我把dsn文件上傳了,你就能在你機子上仿真了,不知道怎么回事,我變壓器兩端電壓怎么這么低啊,
仿過了,原來是 coupling=0.9998 的問題,等于1,0.999, 0.998 都沒問題,波形合理。你再試試其他數值。
0
回復
andyxm
LV.5
7
2005-06-15 09:14
@qaz33510
仿過了,原來是coupling=0.9998的問題,等于1,0.999,0.998都沒問題,波形合理。你再試試其他數值。
qaz兄,先謝謝你啊,我這兩天跟導師有點事,沒時間上網啊,以后有事還要麻煩大哥了
0
回復
andyxm
LV.5
8
2005-06-15 10:20
@andyxm
qaz兄,先謝謝你啊,我這兩天跟導師有點事,沒時間上網啊,以后有事還要麻煩大哥了
qaz兄,我改了之后,波形正常了,但幅值還是偏小啊,還請qaz兄多費心啊
0
回復
andyxm
LV.5
9
2005-06-15 10:22
@qaz33510
仿過了,原來是coupling=0.9998的問題,等于1,0.999,0.998都沒問題,波形合理。你再試試其他數值。
正常以后,變壓器兩端的電壓幅值差不多和輸入電壓相等,可是結果只有一兩百伏啊,郁悶 啊!
0
回復
guagua
LV.4
10
2005-06-15 11:21
@andyxm
正常以后,變壓器兩端的電壓幅值差不多和輸入電壓相等,可是結果只有一兩百伏啊,郁悶??!
我也仿了,才80V,我把它改成了一般普通的全橋,還是80V
0
回復
qaz33510
LV.9
11
2005-06-15 13:18
@andyxm
正常以后,變壓器兩端的電壓幅值差不多和輸入電壓相等,可是結果只有一兩百伏啊,郁悶?。?/span>
我倒沒問題,請看:
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1118812644.gif');}" onmousewheel="return imgzoom(this);">

我的文件有點不同上面的:1118812696.rar
0
回復
guagua
LV.4
12
2005-06-15 14:03
@qaz33510
我倒沒問題,請看:[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1118812644.gif');}"onmousewheel="returnimgzoom(this);">我的文件有點不同上面的:1118812696.rar
奇怪了,我也下載了你的,可以了
0
回復
andyxm
LV.5
13
2005-06-15 15:30
@qaz33510
我倒沒問題,請看:[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1118812644.gif');}"onmousewheel="returnimgzoom(this);">我的文件有點不同上面的:1118812696.rar
奇怪,我的為什么不行啊,不知道 qaz兄改了什么???
0
回復
qaz33510
LV.9
14
2005-06-15 15:57
@andyxm
奇怪,我的為什么不行啊,不知道qaz兄改了什么???
看我的文件,在11帖尾。
0
回復
andyxm
LV.5
15
2005-06-15 23:04
@qaz33510
看我的文件,在11帖尾。
ni你的文件我仿真不了啊,不知道是什么原因,麻煩qaz兄再傳一次,謝謝
0
回復
andyxm
LV.5
16
2005-06-16 00:11
@qaz33510
看我的文件,在11帖尾。

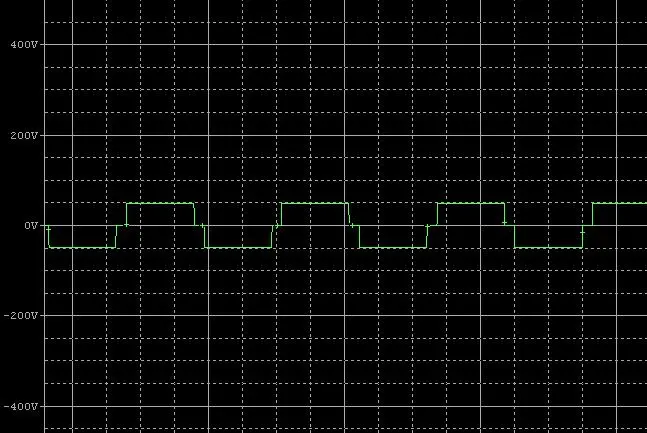

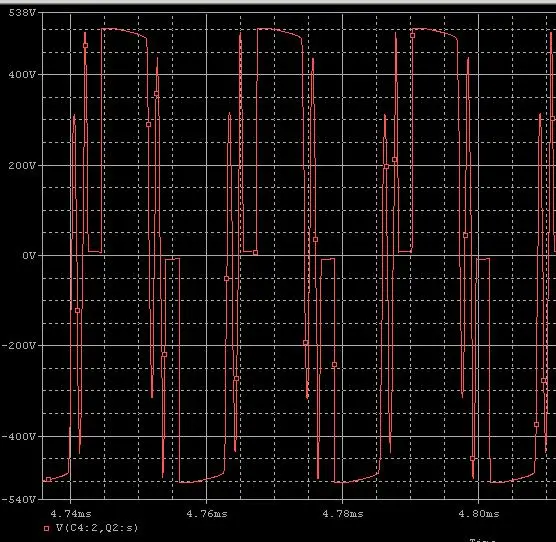

qaz兄,不知道你有沒有看了我的副邊整流輸出波形,還有變壓器副邊波形,好像都不正常,你把你仿真的結果穿上來看看,我的波形如下,你幫我分析分析看,麻煩你了!500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1118851806.jpg');}" onmousewheel="return imgzoom(this);">500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1118851813.jpg');}" onmousewheel="return imgzoom(this);">
分別是變壓器原邊波形和副邊波形
0
回復
qaz33510
LV.9
17
2005-06-16 10:32
@andyxm
qaz兄,不知道你有沒有看了我的副邊整流輸出波形,還有變壓器副邊波形,好像都不正常,你把你仿真的結果穿上來看看,我的波形如下,你幫我分析分析看,麻煩你了![圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1118851806.jpg');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1118851813.jpg');}"onmousewheel="returnimgzoom(this);">分別是變壓器原邊波形和副邊波形
我的波形:
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1118889027.gif');}" onmousewheel="return imgzoom(this);">
我的文件:1118889061.rar
應該可以仿真的,注意線路上的數值有些不同。
0
回復
andyxm
LV.5
18
2005-06-16 11:13
@qaz33510
我的波形:[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1118889027.gif');}"onmousewheel="returnimgzoom(this);">我的文件:1118889061.rar應該可以仿真的,注意線路上的數值有些不同。
我拿你的程序進行了仿真,變壓器副邊好象還是不正常啊500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1118891614.jpg');}" onmousewheel="return imgzoom(this);">
0
回復
qaz33510
LV.9
19
2005-06-16 13:29
@andyxm
我拿你的程序進行了仿真,變壓器副邊好象還是不正常啊[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1118891614.jpg');}"onmousewheel="returnimgzoom(this);">
把 coupling=1, 副邊卻正常了。
0
回復
andyxm
LV.5
20
2005-06-16 15:05
@qaz33510
把coupling=1,副邊卻正常了。
qaz兄,我現在把coupling改為1后波形正常了,可是我在變壓器原邊加上一個電感就不行了啊,麻煩你幫我看看1118905516.dsn
0
回復
qaz33510
LV.9
21
2005-06-16 20:57
@andyxm
qaz兄,我現在把coupling改為1后波形正常了,可是我在變壓器原邊加上一個電感就不行了啊,麻煩你幫我看看1118905516.dsn
我把負載改為電阻,原邊加了電感,仿真后結果比較直觀和較易理解了。1118926632.rar
0
回復
andyxm
LV.5
22
2005-06-16 23:53
@qaz33510
我把負載改為電阻,原邊加了電感,仿真后結果比較直觀和較易理解了。1118926632.rar
謝謝qaz兄!
