上帝啊TL494高手幫幫忙吧

給個電路吧TL494的方波輸出頻率在20K-35K都可.關鍵是占空比要可調0-50%或者越大越好.小弟在此先謝過了
全部回復(9)
正序查看
倒序查看
xiangxf
LV.2
2
2009-04-05 17:28
應該不難,還是你的要求沒說完 880961238923598.doc
0
回復
hbzjcjw
LV.10
3
2009-04-06 10:43
N簡單

把4腳供0-5V,占空就是49-0%
0
回復
tby2008
LV.9
4
2009-04-06 21:10
@hbzjcjw
N簡單把4腳供0-5V,占空就是49-0%
13腳接地
4腳0~3.3V
輸出96%~0
0
回復
2009-04-07 03:13

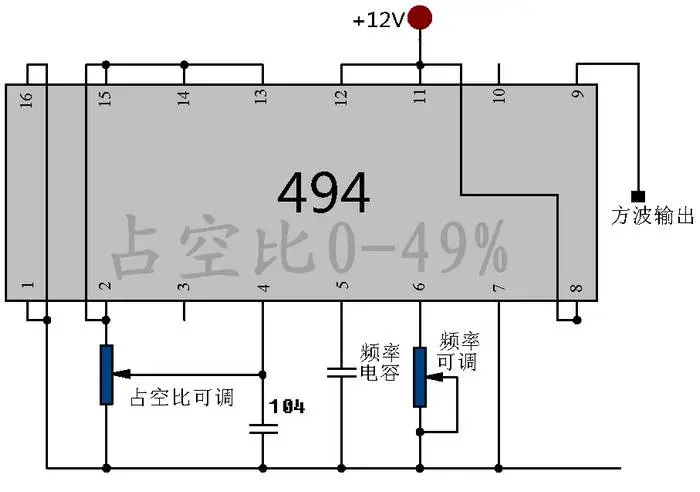

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/76/1377131239045081.jpg');}" onmousewheel="return imgzoom(this);">

改13腳接地 輸出0~96%
0
回復
280412115
LV.4
6
2009-04-07 13:53
@jinnan5282
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/76/1377131239045081.jpg');}"onmousewheel="returnimgzoom(this);">改13腳接地輸出0~96%
吶..轉人家的
0
回復
280412115
LV.4
7
2009-04-07 13:54
@280412115
吶..轉人家的

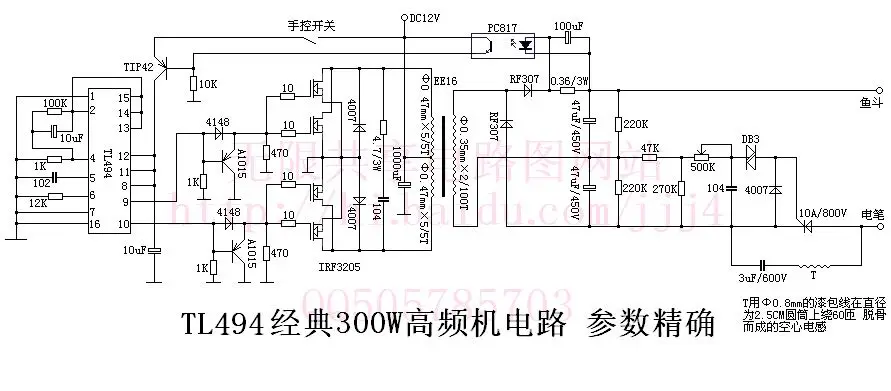

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/76/3208171239083669.jpg');}" onmousewheel="return imgzoom(this);">500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/76/3208171239083686.jpg');}" onmousewheel="return imgzoom(this);">
0
回復
280412115
LV.4
8
2009-04-07 13:56
@280412115
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/76/3208171239083669.jpg');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/76/3208171239083686.jpg');}"onmousewheel="returnimgzoom(this);">
哦!!你要方波的!!看錯了!不好意思
0
回復
2009-04-07 14:35
@280412115
吶..轉人家的
吶..轉人家的????
0
回復
luojun
LV.8
10
2009-04-07 17:32
@jinnan5282
吶..轉人家的????
吶..轉人家的????
