5V/1A(RCC)傳導fail(緊急求救)附圖
輻射OK,就是傳導FAIL,加大Y-CAP也沒有反應.請大家多出出注意]

全部回復(53)
正序查看
倒序查看
在上傳一次PDF擋案 55591182752570.pdf
0
回復
@brinex
C5容量太大了,你這個回路上沒有加開關管恒流措施,在輸入260時變壓器會產生飽和再象,建議改小的,SNAB回路上也要檢查下,你開關管的峰值應是很高的,再調整RC的參數

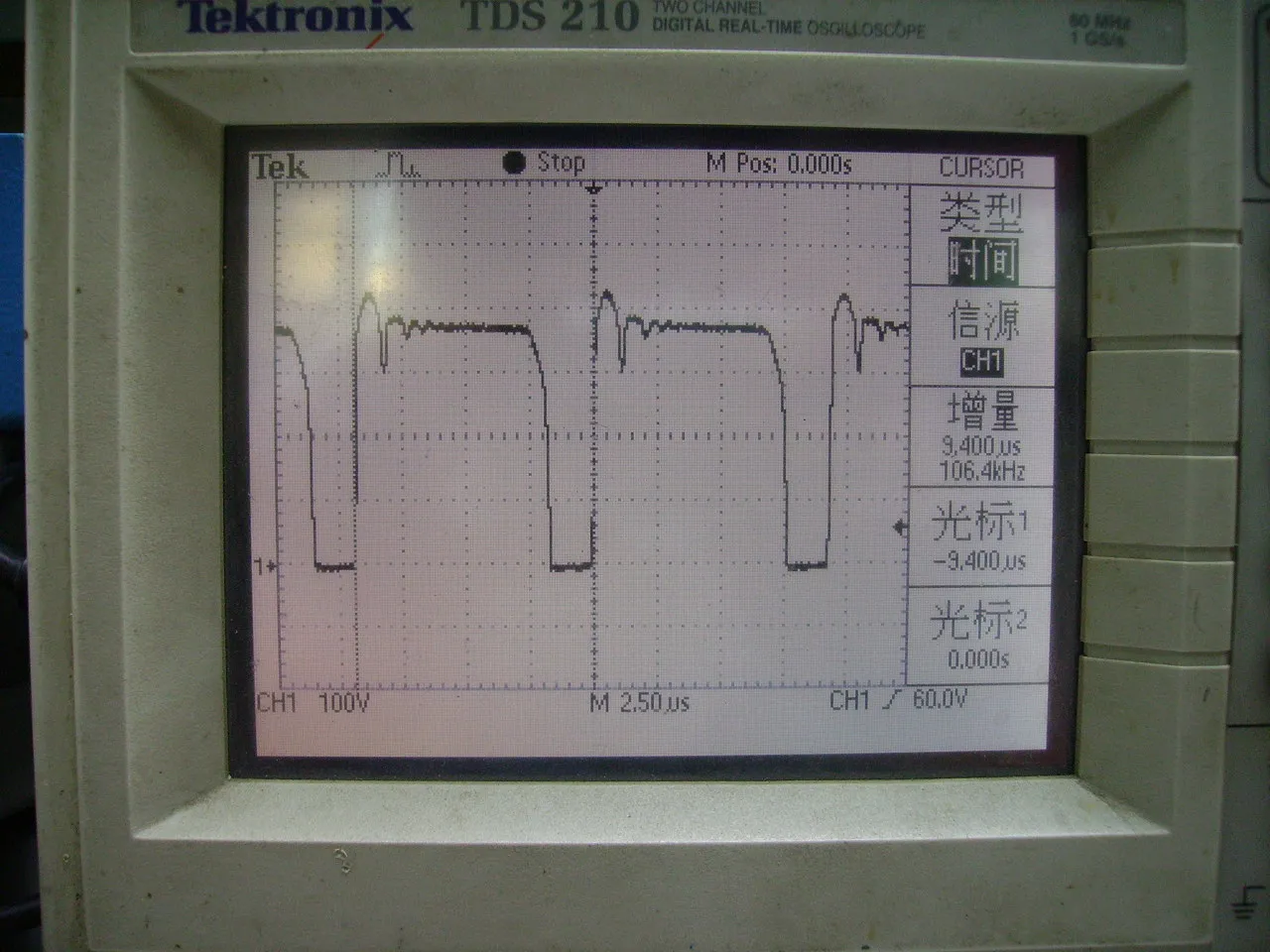

開關尖峰不高,請看附圖.condition:vin=240vac full load
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/54/55591182775979.jpg');}" onmousewheel="return imgzoom(this);">

0
回復

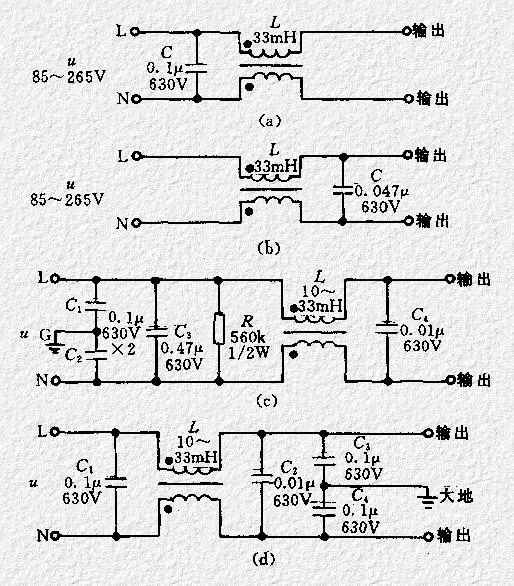

你在交流輸入的地方加如圖的EMI濾波電路沒?(參數可以改)
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/54/343481182910000.jpg');}" onmousewheel="return imgzoom(this);">

0
回復
@anycrying
你在交流輸入的地方加如圖的EMI濾波電路沒?(參數可以改)[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/54/343481182910000.jpg');}"onmousewheel="returnimgzoom(this);">
我的電路沒有加這些,按上圖的接法EMI肯定能過,但是成本太高,因?yàn)槲疫@畢竟輸出才5W
0
