標準UC3843的BUCK直流降壓波形很好就是有負尖(見圖)?

標準UC3843的BUCK直流降壓波形很陡就是有負尖(見圖)?

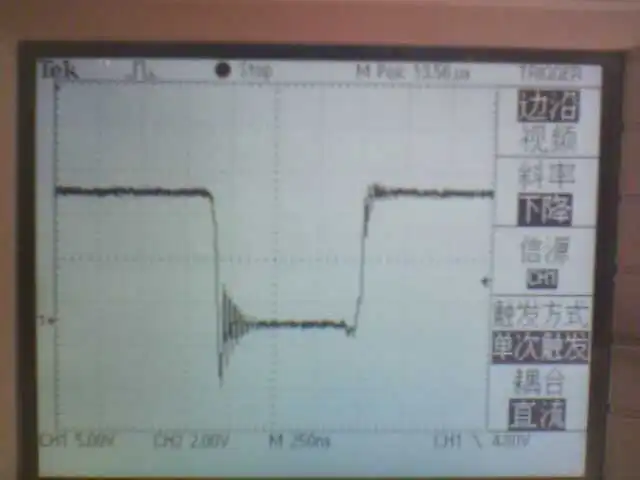

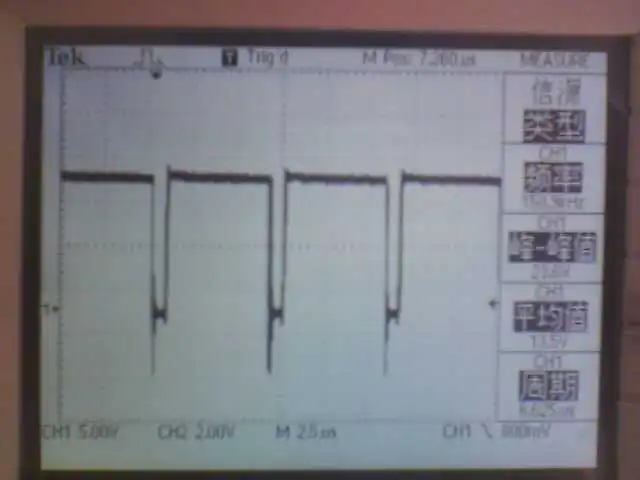

120k波形很好,但上管關斷時總有一個負尖脈沖(如圖右上角),
請問大俠們,為什么?該如何消除?

驅動端已加肖特基
全部回復(6)
正序查看
倒序查看
dragonbtv
LV.4
2
2005-09-05 09:59
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/33/1125885547.jpg');}" onmousewheel="return imgzoom(this);">

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/33/1125885559.jpg');}" onmousewheel="return imgzoom(this);">
0
回復
huitengda
LV.5
3
2005-09-05 21:41
@dragonbtv
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/33/1125885547.jpg');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/33/1125885559.jpg');}"onmousewheel="returnimgzoom(this);">
***
0
回復
2014-08-26 23:00
@dragonbtv
[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/33/1125885547.jpg');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/33/1125885559.jpg');}"onmousewheel="returnimgzoom(this);">
你好,我也遇到了和你類似的問題,請問你的電路最后是怎么解決的?
0
回復
2014-08-26 23:23

第一,你測量波形探頭環路要盡量小

第二,在mos管開通瞬間肖特基二極管關斷,其關斷瞬間會有尖峰。

0
回復
2014-09-01 09:09
@宇外星塵
第一,你測量波形探頭環路要盡量小第二,在mos管開通瞬間肖特基二極管關斷,其關斷瞬間會有尖峰。
負電壓不是在關斷的時候出現的嘛,那個振蕩也是在關斷的出現的,原因是出在,導通的時候?
0
回復
2015-05-10 21:27
@宇外星塵
第一,你測量波形探頭環路要盡量小第二,在mos管開通瞬間肖特基二極管關斷,其關斷瞬間會有尖峰。
大大,能否詳細說明?
